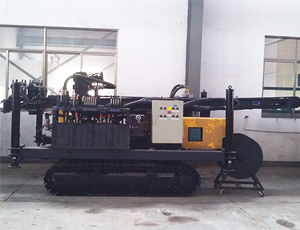

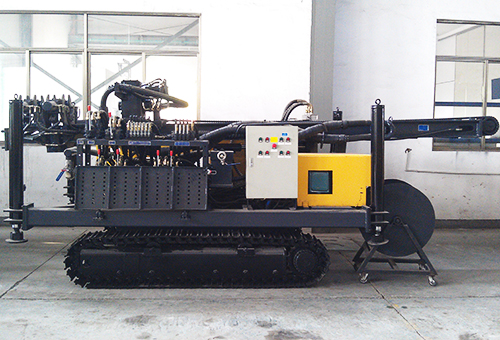

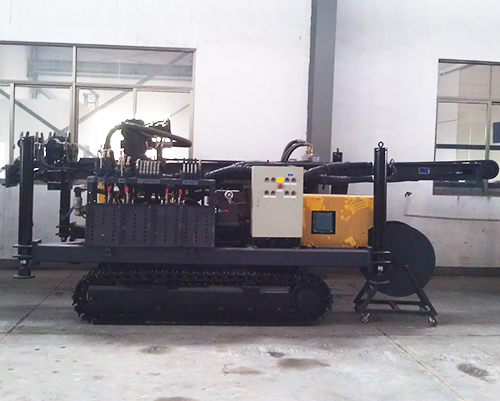

KMD120 Anchoring Drilling Rig

KMD120 anchoring drilling rig is a light, efficient, and multi-functional electric crawler self-walking drilling equipment and mainly applied to anchoring, rotary jet grouting and drilling of well holes for other purpose in domestic subway, high-rise building, airport, ground source heat pump and other deep foundation pits. It is appropriate to use down-the-hole drilling, cased drilling with slush pump (clean water pump) drilling, and combined drilling of rod and casing pipe.

Technical Parameters of KMD120 Anchoring Drilling Rig

Total weight (Kg)

7000

Overall Dimension (mm)

5700×2300×2300

Travel speed (Km/h)

0~2.5

Power(Electric motor)

45Kw+15Kw

Ground clearance(mm)

245

Leg cylinder stroke (mm)

1000

Depth of blast hole(m)

120

Working wind pressure(MPa)

1.05-2.46

Air consumption (m3/min)

16-30

Dia. of drill rod (mm)

(Choose)φ79/φ89

Drill rod length (mm)

3000

Drilling diameter(mm)

φ105-190

Look down Looking up

0-93°

Propelling oil cylinder stroke (mm)

1750

Rotation speed (rpm)

12/50/75/100

Rotary torque (N·m)

12/50/75/100
